Using Raycast Node and Mixamo Create Amazing Results with Animated Dancing Character in Blender 3d

Hello everyone today we will learn how to use basic & simple way Geometry Raycast Node in blender.

Using Raycast node and Mixamo create amazing results with Animated dancing character in blender 3.1.2 This is part 02 and today we will talk about Raycasting blender 3.1.2 new geometry nodes. How to use Mixamo animated characters in blender 3d and import fbx files in blender.

I explained Raycast with Instancing node in very deeply and basics way for beginners. We create 3d motion graphics using Raycast node. I explain Raycasting how it works - Hit Position, Hit Distance and Directions of Raycast node. I hope after watching my video you can understand of the power of Raycast geometry node in blender.

Here is the complete Nodes setup you can see in one view and Easley to understanding.

I will show you how we use in video, I hope you like this, If you have any questions

drop your comments in below.

 Complete Nodes Setup

Note:- This new geometry nodes system in only blender updated versions, please update it

            blender.org download

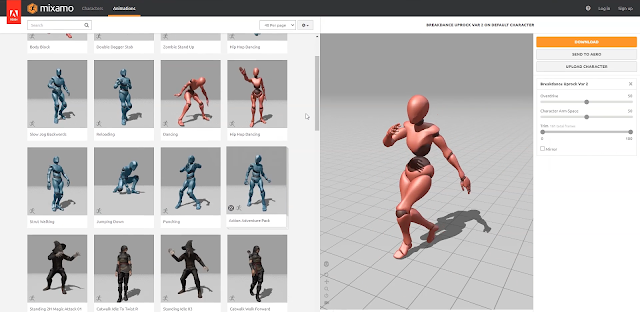

1. First of all Download any Animation Character from Mixamo

    http://www.mixamo.com/

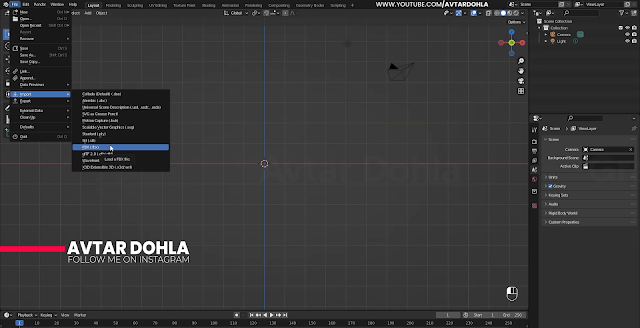

2. Import FBX file

3. Add a Plane then Enlarge it and add a (Grid) node

    Size XY 1 m,    Vertices XY 30

4. Add (Instance on Points) node

    Ico Sphere (Radius 0.016 m)    (Subdivisions 3) 👇

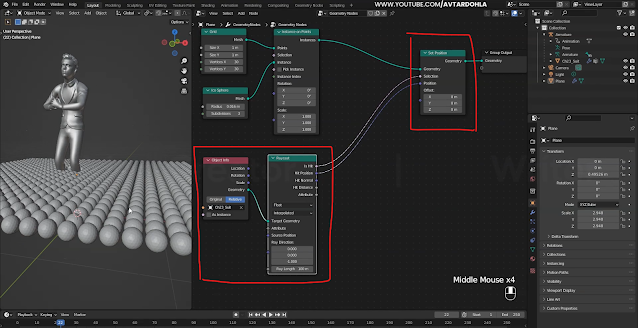

5. Add (Object Info) & (Raycast) & (Set Position) nodes

    Please look at it - https://youtu.be/FJQ1nVHbU0I

6. Add a (Transform) node

    Set Translation (Z -0.15 m) 👇

7. Add 2 (Math) nodes 1st set = Multiply (Value 0.050)

    2nd = Subtract

    Then Add (Combine XYZ) & (Separate XYZ) node 👇

8. Add (Map Range) node for Better Results 👇

9. Apply (Fill) Materials and See Final Result 👇
